Flat Clamp

SKU: ARE145 Category: Tag:

Description

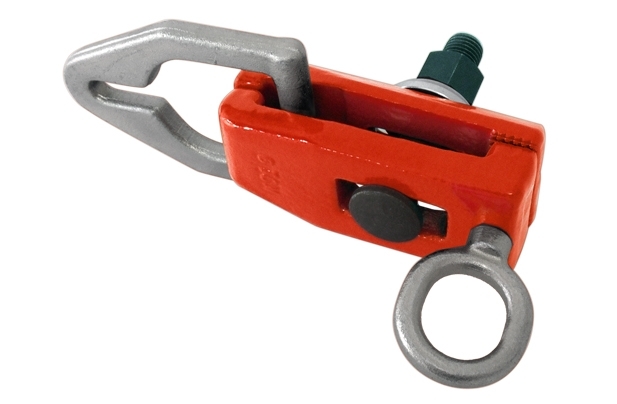

Flat clamp

Extra-flat clamp especially suited for boxed

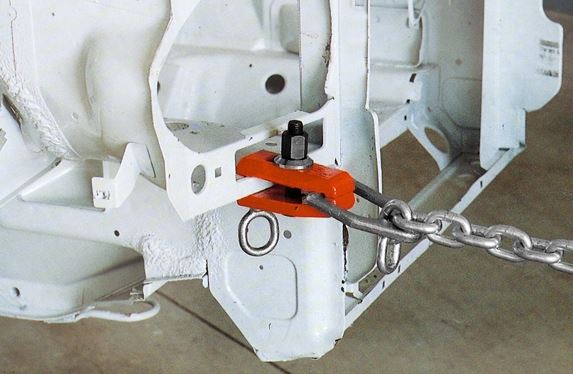

Extra-flat clamp especially suited for boxed – in positions, where the clutter of assembled parts does not allow access by normal-sized clamps (for example, inside the side frames).
The flat clamp is fitted with a number of important features:
The 90° transmission ring, removable, makes it possible to change the pulling direction without detaching the clamp from its original positions. The eyebolt acts as a chain shortener, making the flat clamp faster and easier to use.
The thickness of the eyebolt acts a wedge, creating a “self-locking” effect on the two front jaws while pulling.
The unique tightening device (square-head screw in a square hole) allows the lock nut to be tightened without using a monkey wrench on the head of the screw, making for timesavings and greater simplicity of use.

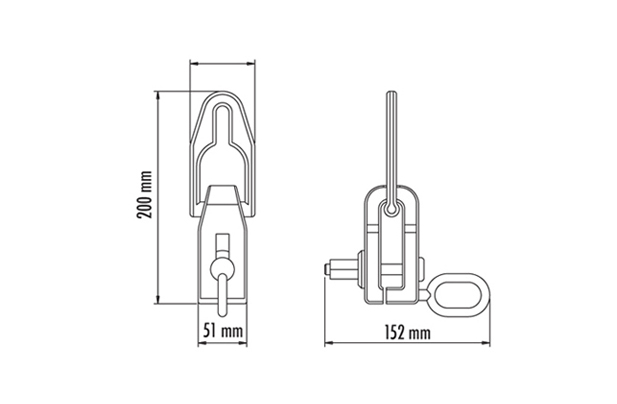

Technical specifications 145
Row Material steel
Pull strength ton 3
Jaw width mm 51
Weight Kg 1,8
